Pharmec provides comprehensive material preparation systems tailored for pharmaceutical companies, covering a wide range of dosage forms, including liquid, semi-solid, and sterile preparations. Our solutions encompass mixing and storage tanks, CIP/SIP cleaning systems, and fully automated control systems, ensuring high efficiency, consistency, and compliance with GMP, FDA, and WHO standards. These systems are widely used in pharmaceutical production facilities, biotechnology labs, vaccine manufacturing, intravenous (IV) solution preparation, and sterile formulation processes, meeting the stringent requirements of modern pharmaceutical manufacturing.
To address the unique product requirements of each client, we provide end-to-end technical solutions, covering the entire project lifecycle—from concept and process design, engineering and detailed planning, equipment manufacturing, and on-site installation to commissioning, personnel training, operation guidance, and long-term maintenance support. Additionally, we offer comprehensive validation services, including FAT, SAT, IQ, OQ, and PQ documentation, ensuring full regulatory compliance. Our systems are not only suitable for pharmaceutical production but also for biotechnology, nutraceuticals, cosmetics, and other industries requiring high-precision liquid processing.

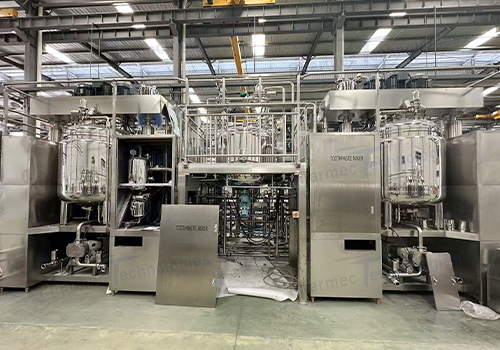

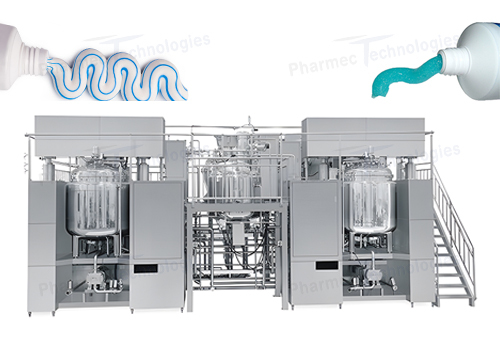

PT-ZRZGJ-3000L paste making equipment system includes a 3000L paste making system, one 1000L saccharin mixing tank, and one 1200L glue mixing tank each. The tanks are insulated/jacketed and have a sealed welded head structure; The tank body is equipped with a weighing module, and the material is discharged from the center of the bottom, standing on a solid steel platform to bear the weight (three points);
One set of 3000L lifting vacuum toothpaste paste making mixer (flange split type, vertical hydraulic lifting), equipped with bottom suction (3 pieces) and discharge port (1 piece), tank body equipped with insulation and cooling jacket (heating suitable for tank disinfection and drying process), equipped with upper anchor scraping wall mixing, independent control, including dual high-speed dispersed mixing, variable frequency control, speed can be set; Bottom feeding and discharging, including bottom feeding of liquid material (including premixed material), bottom feeding of powder material, bottom feeding of essence (placed above the feeding port of essence), and bottom low point discharging; PLC touch screen control, standing on the ground to bear weight;
One 600L powder (toothpaste abrasive) mixing tank, with an upper head, a lower cone bottom, and a negative pressure dust-free feeding unit. The dust-free feeding part adopts a closed flip type feeding, a single layer tank, and is equipped with an upper mounted twin-screw powder special mixing mechanism. The bottom is discharged in the center, and a powder distributor unit is configured to ensure that the powder is smoothly transported to the paste making machine separately without residue; The tank is equipped with a weighing sensor, which can verify the weight of the input and output materials; The dust-free feeding station is equipped with pulse positive pressure dust removal equipment to reduce dust and protect the safety of operators.
